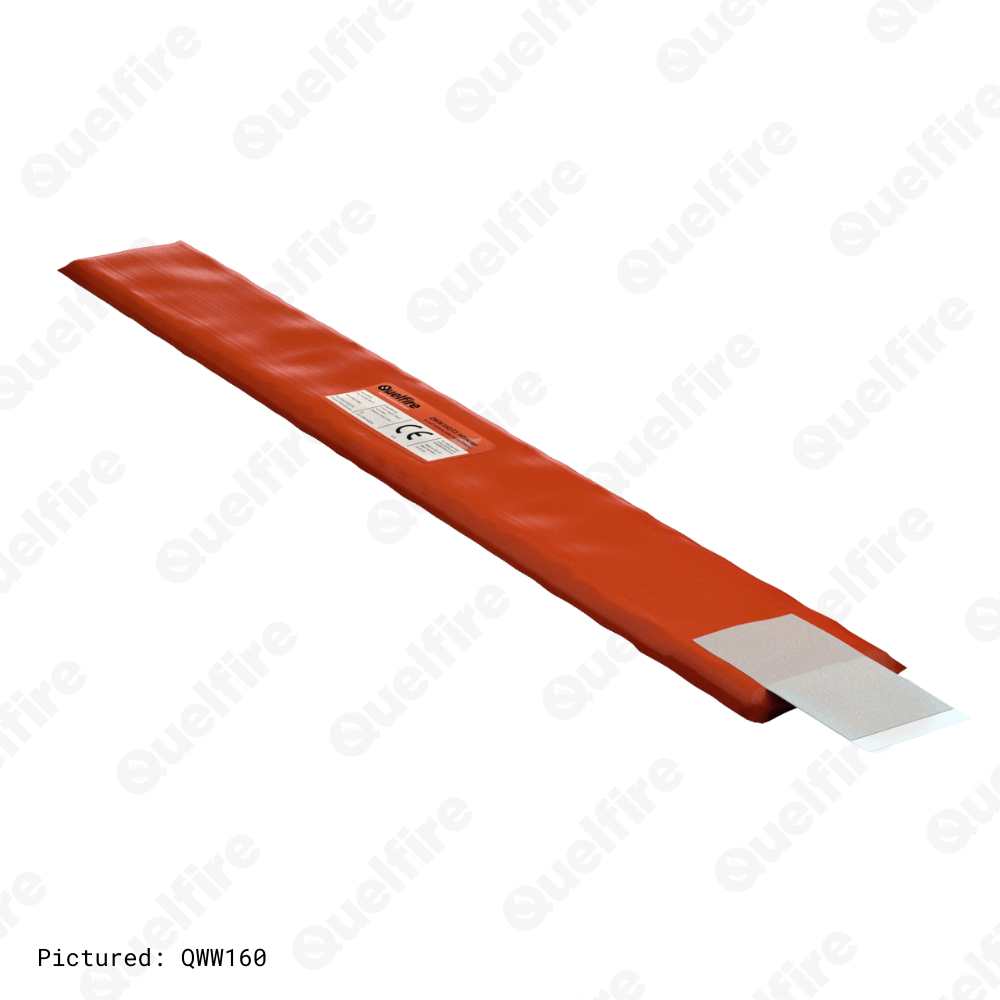

QWW Intuwraps prevent the spread of fire where pipes penetrate fire compartment floors.
As a leading manufacturer and supplier of firestopping solutions, we understand how important compliant firestopping is to protect people and property. Our fire wraps prevent the spread of fire where plastic pipes pass through compartment walls and floors. Browse through our range below and request a quote today. Alternatively, contact us if you require more information.
*Please note, we strongly advise that you check the tested scope of application before purchasing any of our products
Standards & Approvals
Standards & Approvals

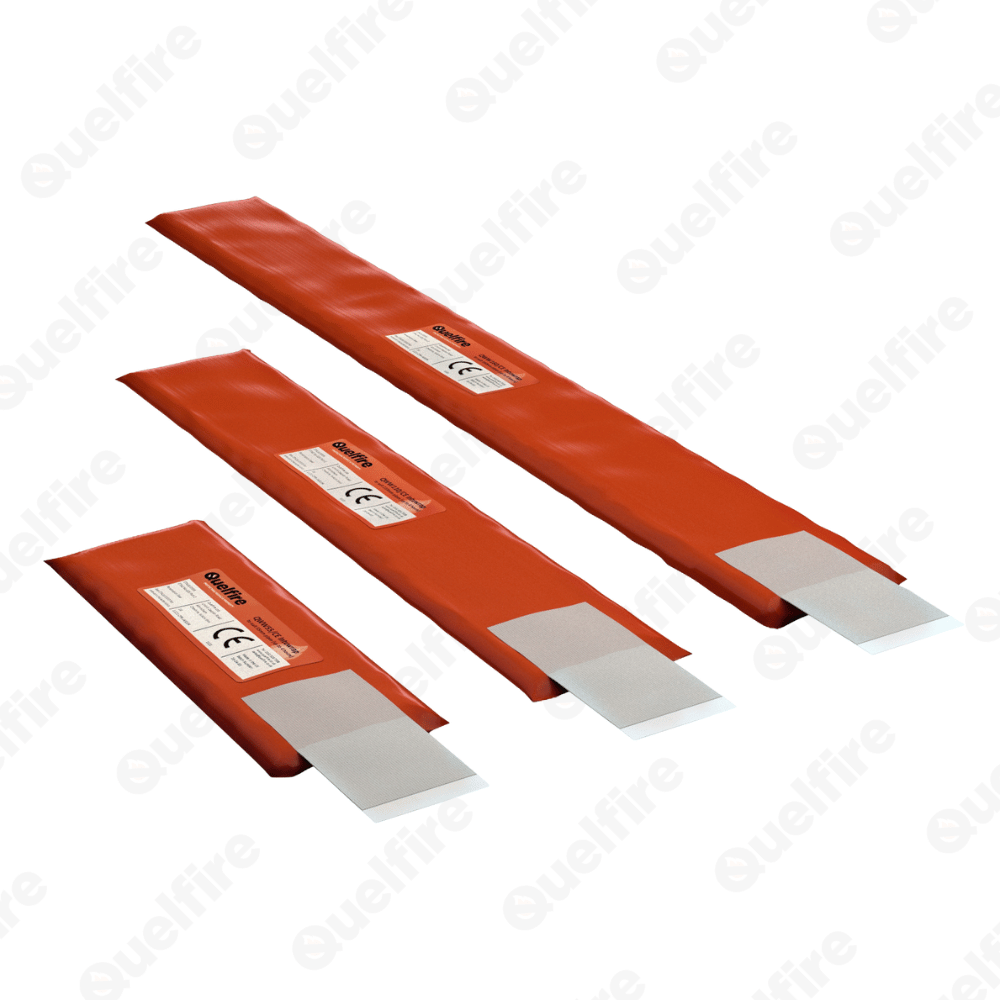

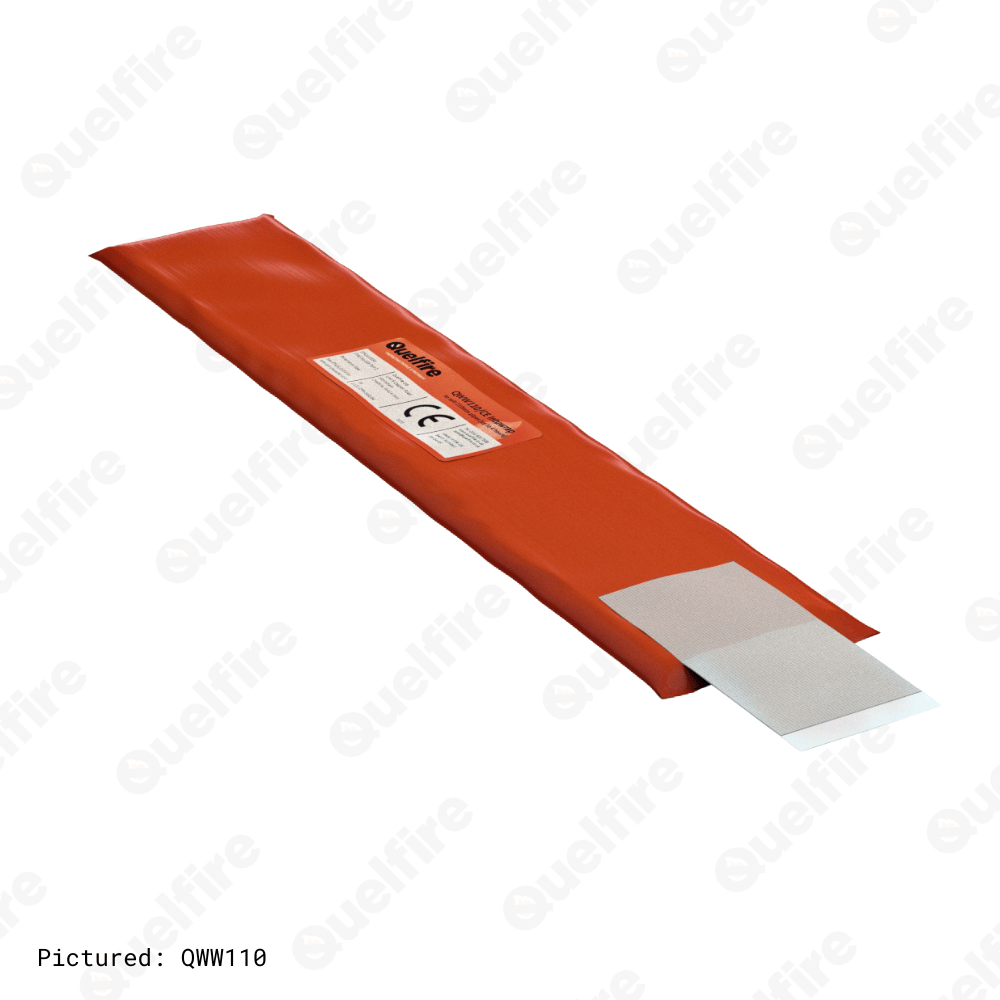

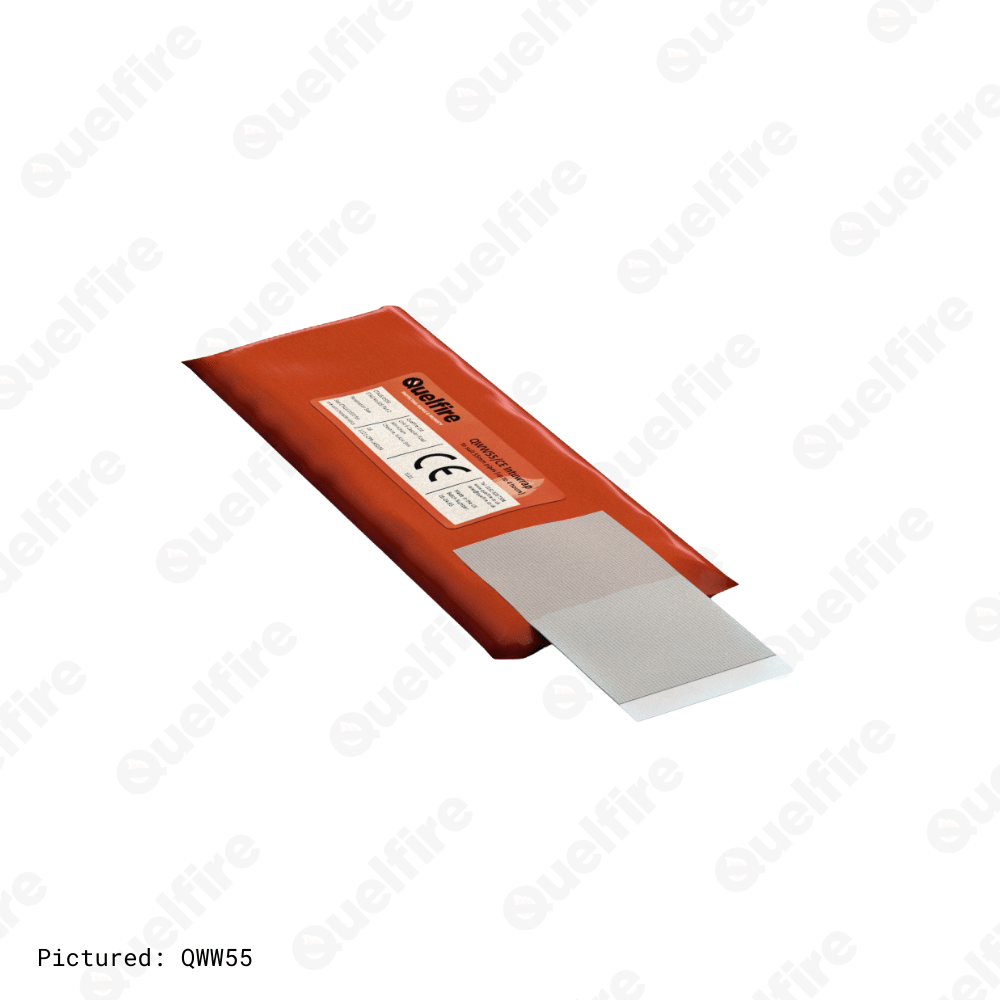

The correct product is chosen by determining the outside diameter of the pipe. A QWW110/CE suits a 110mm outside diameter plastic pipe and a QWW50/CE suits a 50mm outside diameter plastic pipe for example.
The orange plastic sleeve is an integral part of the QWW Intuwrap so should not be removed. QWW Intuwraps have a self adhesive tap on one end which is used to secure the wrap around the pipe.

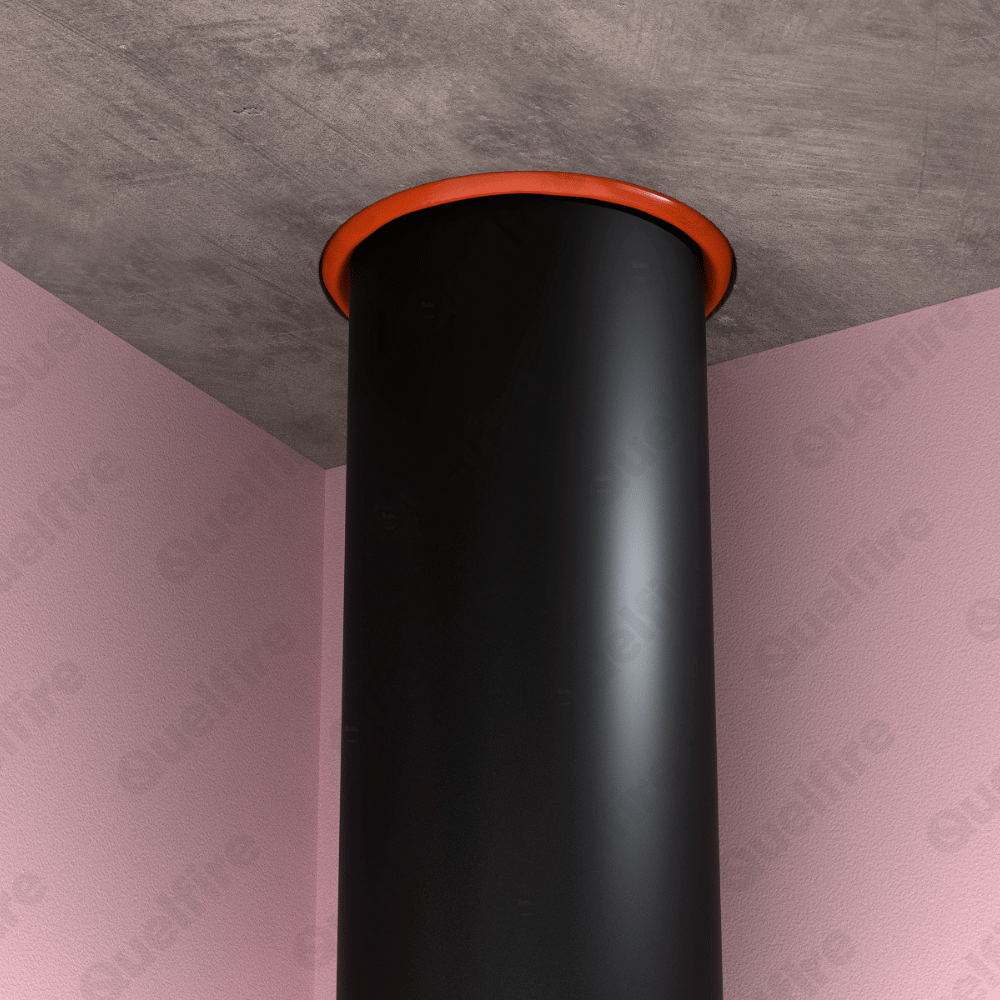

The QWW Intuwrap can be installed within concrete floors around plastic pipes to maintain the fire compartment.
A lot of extra work and associated cost can be avoided by early coordination and good communication between all trades. For example where the correct diameter hole is diamond drilled, no shuttering will be required and installation is very simple requiring a simple backfill on top of the Intuwrap.
Where holes are incorrectly drilled oversize or larger square holes are left or formed then the hole will need shuttering and the whole penetration backfilling with QF2 Fire Protection Compound.
There must be no gap around the Intuwrap and the Intuwrap must be fitted flush with the underside of the concrete slab or fire seal.
Full installation details and step by step instructions are available to show the options.
*Please note that custom made items can expect to have longer lead times. Next working day is typical but can depend on outside factors not controlled by Quelfire.
-
CE Mark
CE marking logo shows that a product meets the health, safety, and environmental requirements of the European Economic Area (EEA) and can be freely traded within the EEA market. CE marking is a voluntary requirement for passive protection penetration seals.
-
BS EN 1366-3 tested
The Warringtonfire logo is evidence that this product was BS EN 1366-3 fire resistance tested at a Warringtonfire accredited test laboratory.
Product Info & Features
Product Information
| Property | Details |
|---|---|
| Composition |
The QWW Intuwraps consist of a high-performance graphite-based intumescent material within a polythene cover,
which reacts under heat to exert pressure on the pipe as it softens, forming a carbonaceous char.
This creates an effective insulation plug, preventing smoke and fire from passing through to adjoining compartments.

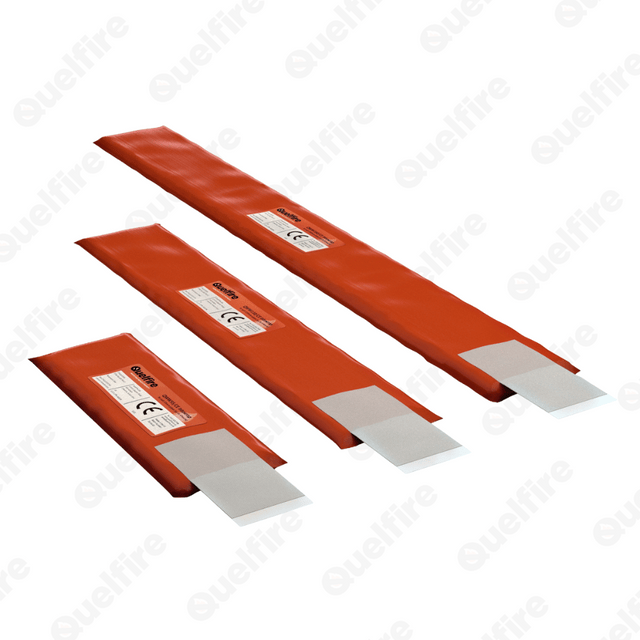

QWW Intuwraps are specifically manufactured to suit individual pipe diameters. The orange plastic sleeve is an integral part of the QWW Intuwrap and should not be removed. QWW Intuwraps include a self-adhesive tab on one end, used to secure the wrap around the pipe. |
| Durability | Tested to Type X durability, meaning the QWW Intuwraps can be installed in conditions exposed to weathering. |
Features & Benefits
-
Tested to BSEN 1366-3
-
Classified according to EN 13501-2
-
Up to 4 hour fire rating
-
Suitable for plastic pipes including but not limited to PVC, PVC-U, PE, HDPE, MDPE & PP
-
Available for 32-160mm diameter pipes
-
For use in concrete floors
-
No mechanical fixings required
-
Performance unaffected by weathering (Type X Durability)
-
Assessed for use in steel profile deck concrete composite floors
-
Compatible with the QuelStop System – QF2 Fire Protection Compound
Product Information
| Property | Details |
|---|---|
| Composition |
The QWW Intuwraps consist of a high-performance graphite-based intumescent material within a polythene cover,
which reacts under heat to exert pressure on the pipe as it softens, forming a carbonaceous char.
This creates an effective insulation plug, preventing smoke and fire from passing through to adjoining compartments.
QWW Intuwraps are specifically manufactured to suit individual pipe diameters. The orange plastic sleeve is an integral part of the QWW Intuwrap and should not be removed. QWW Intuwraps include a self-adhesive tab on one end, used to secure the wrap around the pipe. |
| Durability | Tested to Type X durability, meaning the QWW Intuwraps can be installed in conditions exposed to weathering. |
Features & Benefits
-
Tested to BSEN 1366-3
-
Classified according to EN 13501-2
-
Up to 4 hour fire rating
-
Suitable for plastic pipes including but not limited to PVC, PVC-U, PE, HDPE, MDPE & PP
-
Available for 32-160mm diameter pipes
-
For use in concrete floors
-
No mechanical fixings required
-
Performance unaffected by weathering (Type X Durability)
-
Assessed for use in steel profile deck concrete composite floors
-
Compatible with the QuelStop System – QF2 Fire Protection Compound
Specification Details
| Product Code | Pipe Size (mm) | Approx. Space Needed Around Pipe (mm) | Recommended Hole Diameter (mm) | QWW Length (mm) |
|---|---|---|---|---|
| QWW32/CE | 32Ø | 5 | 42Ø | 60 |
| QWW40/CE | 40Ø | 5 | 50Ø | 60 |
| QWW50/CE | 50Ø | 5 | 60Ø | 60 |
| QWW55/CE | 55Ø | 10 | 74Ø | 60 |
| QWW63/CE | 63Ø | 10 | 82Ø | 60 |
| QWW75/CE | 75Ø | 10 | 94Ø | 60 |
| QWW82/CE | 82Ø | 10 | 102Ø | 60 |
| QWW90/CE | 90Ø | 10 | 110Ø | 60 |
| QWW110/CE | 110Ø | 11 | 132Ø | 60 |
| QWW125/CE | 125Ø | 15 | 155Ø | 60 |
| QWW160/CE | 160Ø | 22 | 204Ø | 60 |
| Product Code | Pipe Size (mm) | Approx. Space Needed Around Pipe (mm) | Recommended Hole Diameter (mm) | QWW Length (mm) |
|---|---|---|---|---|
| QWW32/CE | 32Ø | 5 | 42Ø | 60 |
| QWW40/CE | 40Ø | 5 | 50Ø | 60 |
| QWW50/CE | 50Ø | 5 | 60Ø | 60 |
| QWW55/CE | 55Ø | 10 | 74Ø | 60 |
| QWW63/CE | 63Ø | 10 | 82Ø | 60 |
| QWW75/CE | 75Ø | 10 | 94Ø | 60 |
| QWW82/CE | 82Ø | 10 | 102Ø | 60 |
| QWW90/CE | 90Ø | 10 | 110Ø | 60 |
| QWW110/CE | 110Ø | 11 | 132Ø | 60 |
| QWW125/CE | 125Ø | 15 | 155Ø | 60 |
| QWW160/CE | 160Ø | 22 | 204Ø | 60 |
Standard Installation Detail Examples
| File | |
|---|---|
| QF2-CF150-01 | Plastic Pipe Penetrating a Rigid Floor | View |
| QF2-CF150-08 | Plastic Pipe Penetrating a Rigid Floor | View |
| QF2-CF150-P-08 | Plastic Pipe Penetrating a Rigid Floor | View |
| QF2-HC150-08 | Plastic Pipe Penetrating a Hollow Core Floor | View |
| QF2-PD45-08 | Plastic Pipe Penetrating a Profile Deck Floor System | View |
Browse More Tested Details
We have listed just five examples of tested details using the QWW Intumescent Pipe Wrap, though there are more available. In total, our standard installation details library contains over 600 tested details across our full product range.
Videos
-
Firestopping Product Spotlight: QWW Intuwrap Intumescent Pipe Wrap
In this short video, Alec Purdie (Technical Manager) highlights our QWW Intuwrap. This product prevents the spread of fire through PVC, HDPE, & PP pipes where they penetrate fire compartment floors.
-
How to Firestop a Plastic Pipe Penetrating a Concrete Floor (Oversized Hole)
In this short video, we will be looking at the installation of a QF2 Fire Protection Compound detail. The Quelfire products that we will be using are QF2 Fire Protection Compound, MW Mineral Shuttering Slab, and a QWW Intumescent Wrap.
Frequently Asked Questions
What is the QWW Pipe Wrap used for?
What is the QWW Pipe Wrap used for?
The QWW Pipe Wrap is designed to maintain fire compartmentation where plastic pipes pass through fire-rated floors.
Does it need mechanical fixings?
Does it need mechanical fixings?
No, the pipe wrap is installed within the substrate and does not require separate fixings.
Can it be retrofitted around existing pipes?
Can it be retrofitted around existing pipes?
Yes, the QWW Pipe Wrap can be fitted around existing pipework as part of new installations or refurbishment projects.
How should the opening/aperture be prepared before installing the wrap?
How should the opening/aperture be prepared before installing the wrap?
The hole should be cut as tight as possible to the outside of the pipe wrap, following Quelfire’s installation guidance for best performance.
Where can I find the test evidence and installation details?
Where can I find the test evidence and installation details?
Tested details, installation instructions, and other guidance are available above, and from the Technical Team.
