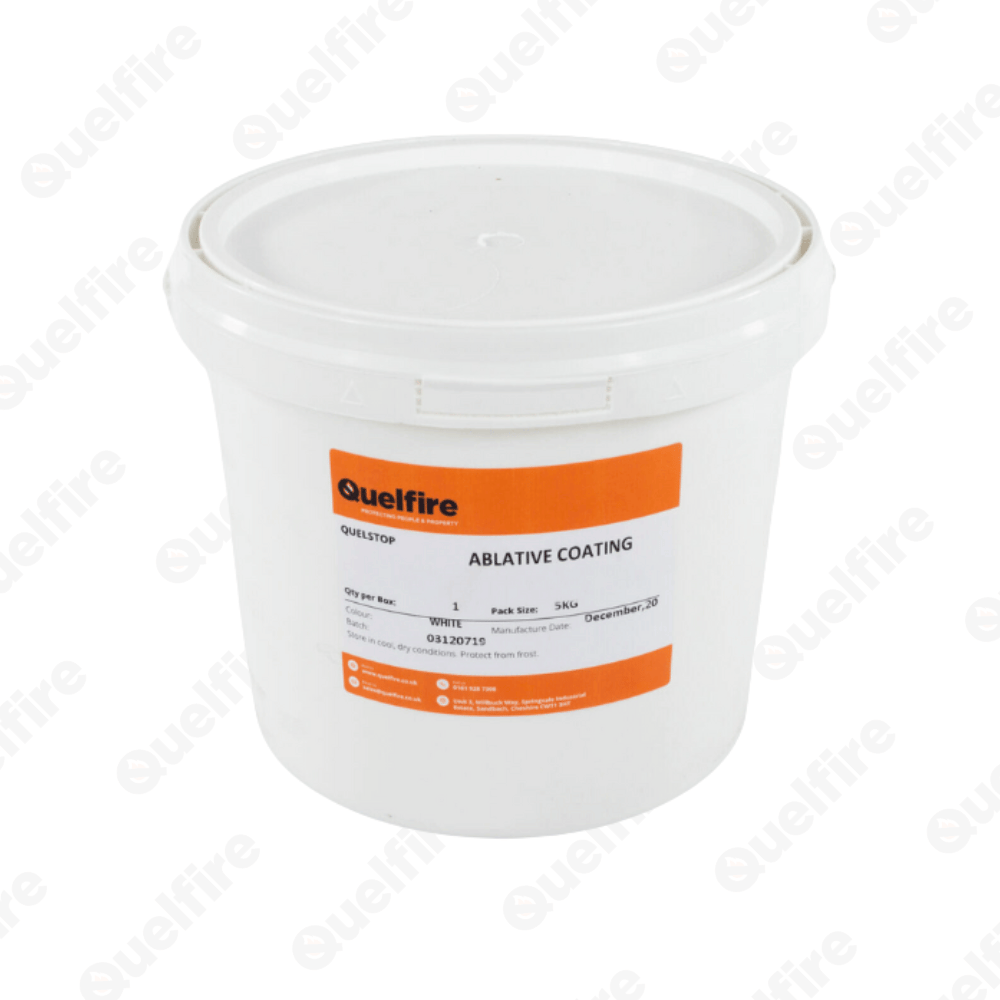

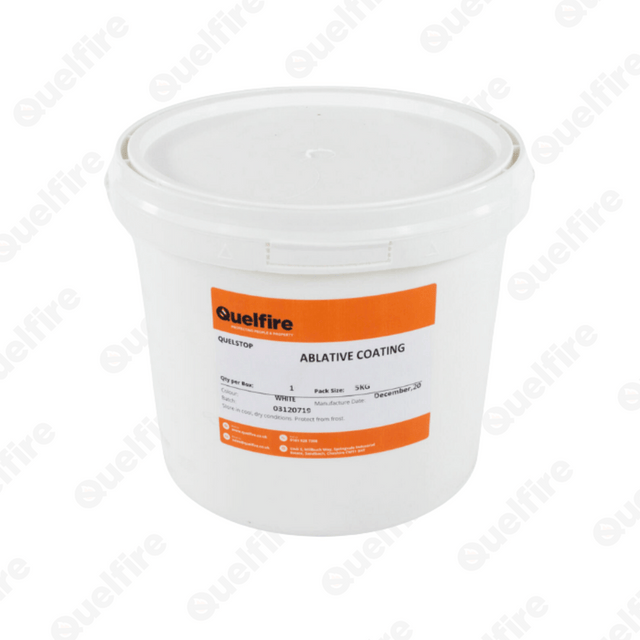

Quelstop Ablative Coating - 5kg Tub
Description
Description
Designed for use with the QuelStop Fire Batt System, this product offers a range of features and benefits.
Primarily, the QuelStop Ablative Coating is used to restore the fire rating of the QuelStop Fire Batt by repairing any damage caused during the installation.

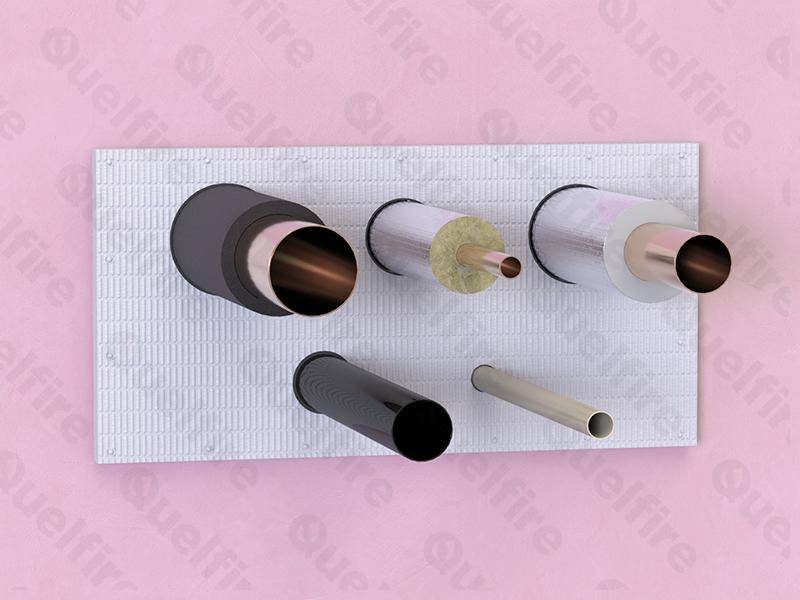

It can also be utilised as part of a tested firestopping system, and applied to individual services where they cross compartment lines. This helps improve the fire-resistance performance.
The QuelStop Ablative Coating is water-based, providing easy application by brush. With its rubber-like and fire-resistant properties, this coating acts as a barrier in the event of a fire, helping to prevent the spread of fire and smoke.
Standards & Approvals
Standards & Approvals
*Please note that custom made items can expect to have longer lead times. Next working day is typical but can depend on outside factors not controlled by Quelfire.
-
CE Mark
CE marking logo shows that a product meets the health, safety, and environmental requirements of the European Economic Area (EEA) and can be freely traded within the EEA market. CE marking is a voluntary requirement for passive protection penetration seals.
-
BS EN 1366-3 tested
The Warringtonfire logo is evidence that this product was BS EN 1366-3 fire resistance tested at a Warringtonfire accredited test laboratory.
Product Info & Features
Product Information
| Property | Details |
|---|---|
| Composition |
QuelStop Ablative Coating is a white liquid coating supplied in 5kg re-sealable plastic tubs and
is brush applied as part of the QuelStop System to QuelStop Ablative Coating Fire Batt.
|
| Density – ISO 2811-1 | 1.35g/cm³ |
| Used in conjunction with | QB50D QuelStop Fire Batt |
| Shelf life | 12 months when stored in a cool, dry position. |
Features & Benefits
-
Fire tested to BS EN1366-3-2009 as part of the QuelStop System
-
Provides fire resistance to some service penetrations
-
Simple to install, by brush application
-
Contributes to providing a smoke seal
-
Supplied in 5kg re-sealable tubs
Product Information
| Property | Details |
|---|---|
| Composition |
QuelStop Ablative Coating is a white liquid coating supplied in 5kg re-sealable plastic tubs and
is brush applied as part of the QuelStop System to QuelStop Ablative Coating Fire Batt.
|
| Density – ISO 2811-1 | 1.35g/cm³ |
| Used in conjunction with | QB50D QuelStop Fire Batt |
| Shelf life | 12 months when stored in a cool, dry position. |
Features & Benefits
-
Fire tested to BS EN1366-3-2009 as part of the QuelStop System
-
Provides fire resistance to some service penetrations
-
Simple to install, by brush application
-
Contributes to providing a smoke seal
-
Supplied in 5kg re-sealable tubs
Specification Details
| Property | Details |
|---|---|
| Usage |
It is primarily used for repairing damaged or cracked QuelStop Fire Batt coating but is also required
in some instances for coating back the services penetrating the seal.
It may also be used in some instances for coating the raw edges of cut QuelStop Fire Batt when pattress fitted, for example. |
| Property | Details |
|---|---|
| Usage |
It is primarily used for repairing damaged or cracked QuelStop Fire Batt coating but is also required
in some instances for coating back the services penetrating the seal.
It may also be used in some instances for coating the raw edges of cut QuelStop Fire Batt when pattress fitted, for example. |
Frequently Asked Questions
What are ablative coatings?
What are ablative coatings?
Ablative coating is a white, liquid coating applied to fire batt to repair any cracks or damage that may have occurred during installation. The main reason it is used is to reinstate the fire rating of the product.
Does ablative coating expand?
Does ablative coating expand?
Because ablative coating is not an intumescent material, it does not expand as such, but rather chars to form a barrier.
How to use ablative coating?
How to use ablative coating?
The best way to apply ablative coating is by brush, as part of the QuelStop Fire Batt System. We encourage you to always check the scope of application or get in touch if you have a question!
Watch our video: How to Apply QuelStop Ablative Coating to the QuelStop Fire Batt
Can I paint over ablative paint?
Can I paint over ablative paint?
We do not recommended painting over any of our products. This is because we have not fire tested this scenario, meaning the outcomes are unknown, and it could compromise the effectiveness of the firestop.
