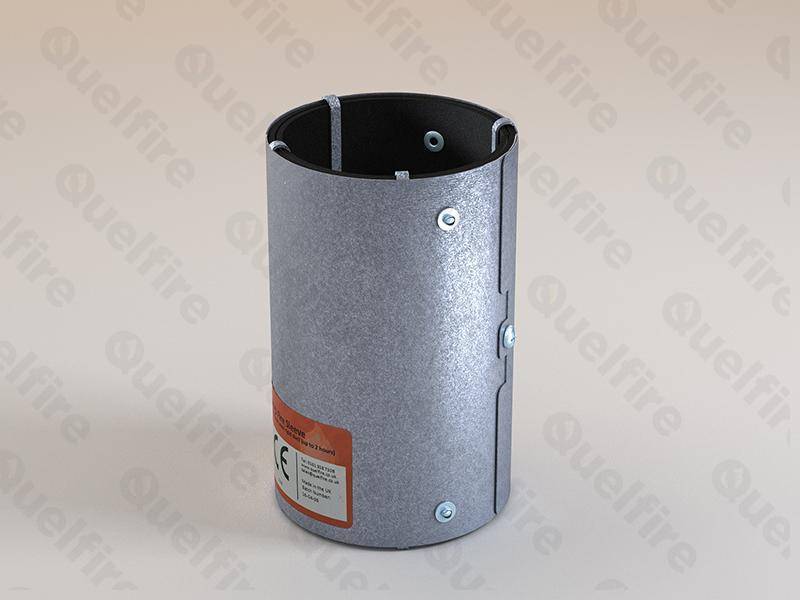

The QRS is specifically designed to help prevent fire from spreading through plastic ventilation ducts where they penetrate fire compartment lines.

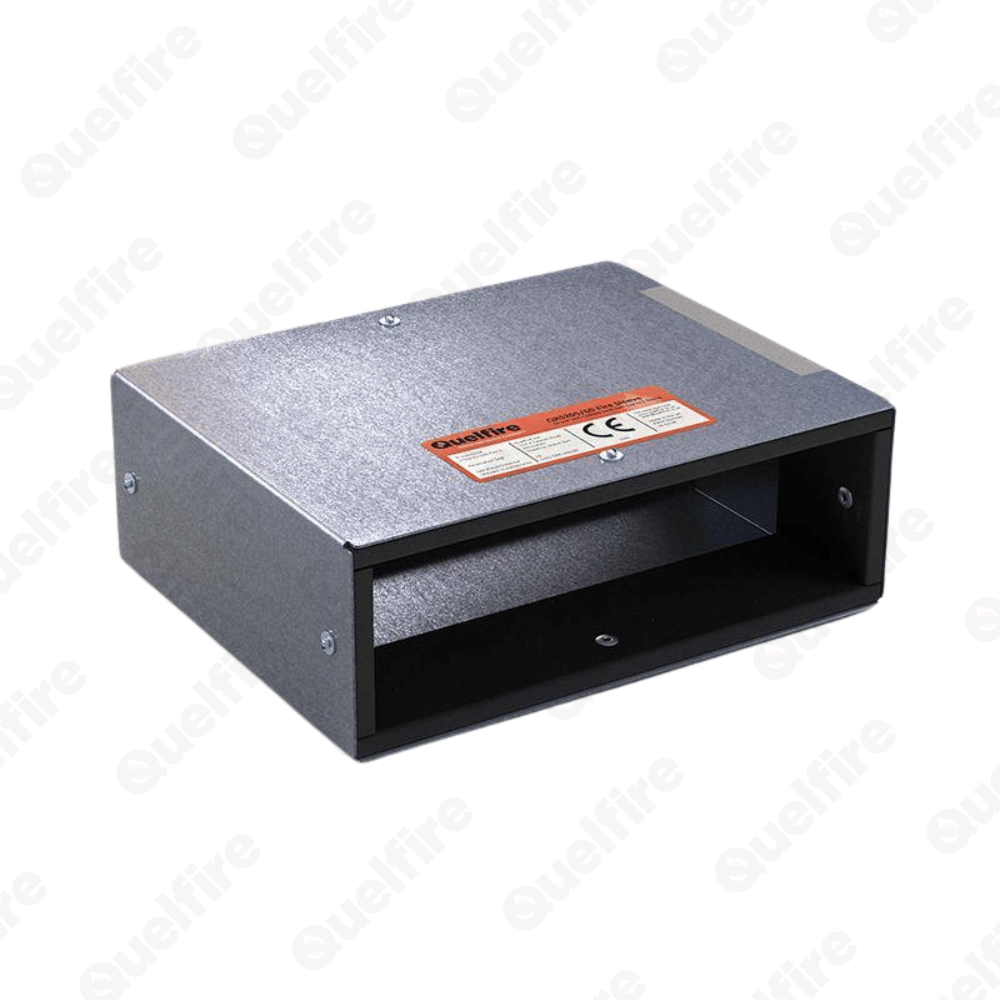

It has a sturdy pressed steel shell with a core made of graphite-based intumescent material. When exposed to fire, the intumescent material expands rapidly, sealing the gap left behind by the melting duct.
You don't need any mechanical fixings for installation, and its performance isn't affected by weather, making it an ideal solution for durability.

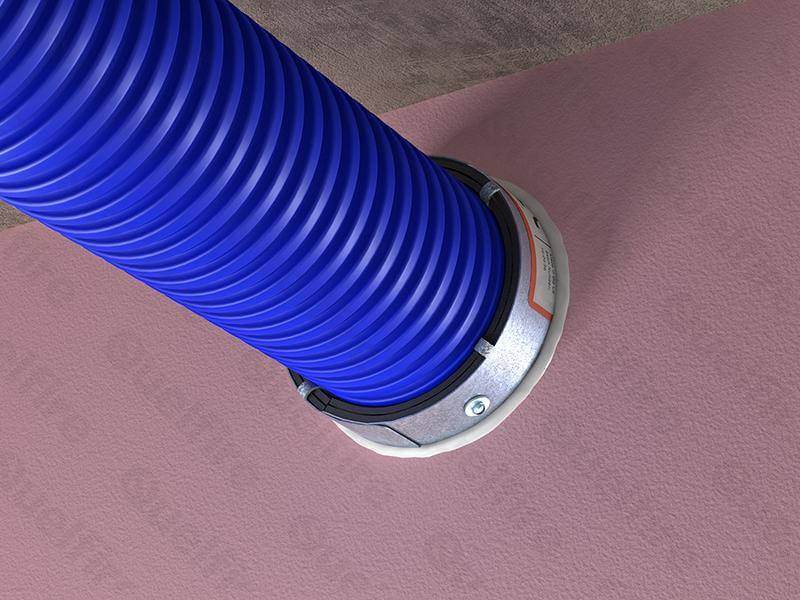

The sleeve can be retrofitted, installed as a cluster with multiple ducts, and is suitable for use in conjunction with the QuelStop Fire Batt system.
Standards & Approvals
Standards & Approvals
Application
Application
Installation
Installation
For the simplest installation, the QRS Fire Sleeve should be installed around the duct and then the wall installed tight around the QRS, however, they can be retrofitted into the wall too.

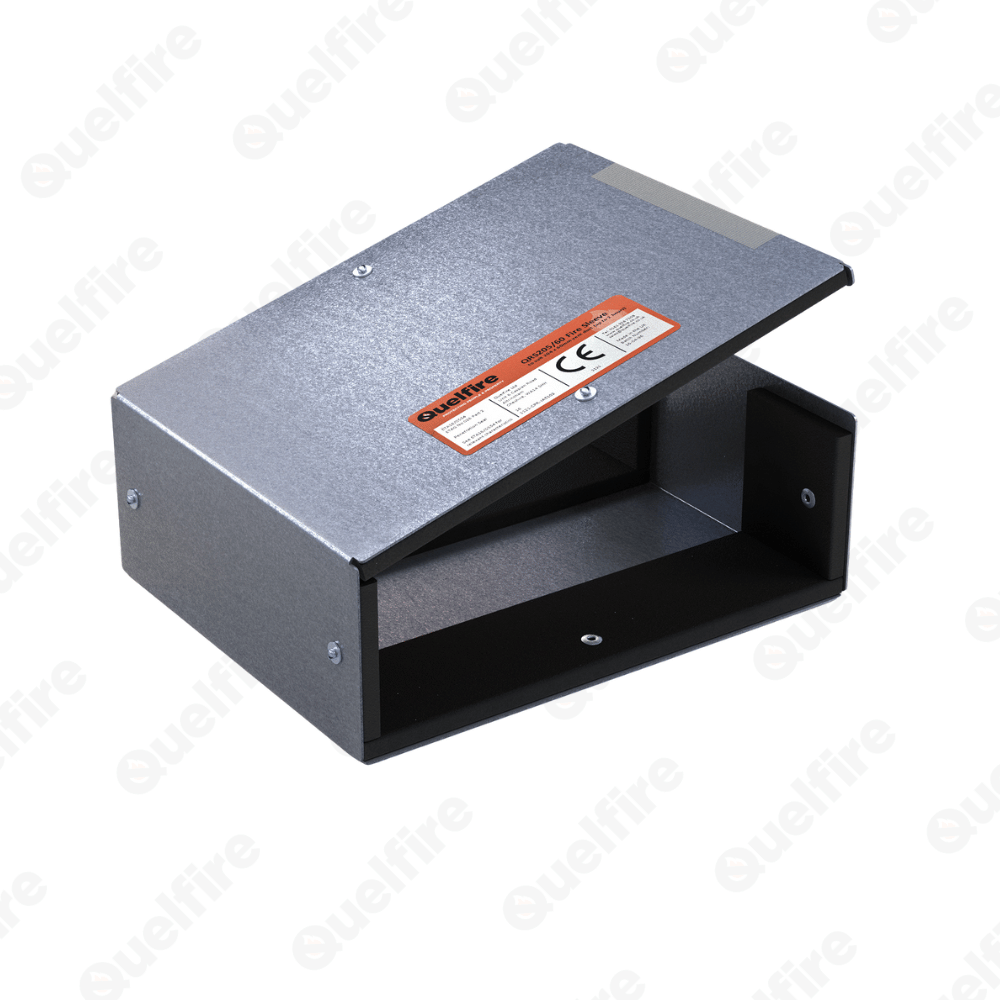

Simply hinge open the lid, feed around the duct, wrap tight and close the lid, secure shut with the self-adhesive tape supplied (or self tapping screw in the case of circular fire sleeves) and then slide the QRS along the duct into the wall construction.
The QRS should be installed centrally positioned within the wall and must be either flush or protruding from both sides of the wall in accordance with the relevant installation detail.
Once installed into the wall, in the correct position, the perimeter should be sealed with QuelStop Intumescent Acoustic Acrylic Sealant.

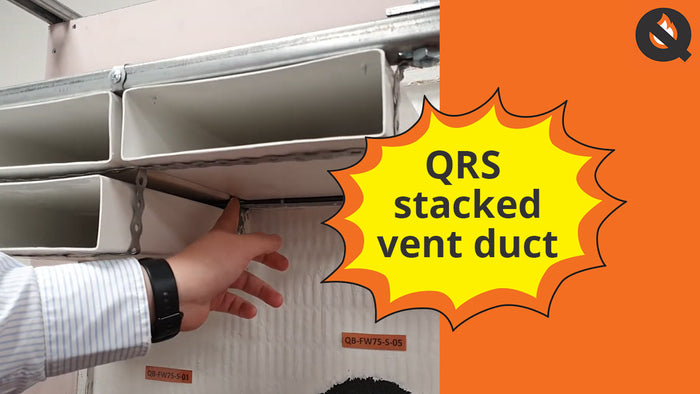

Where oversize hole or letterboxes with other services are formed then the QRS Fire Sleeve can be installed in conjunction with the QuelStop Fire Batt system having been tested in various wall constructions including with multiple ducts/QRS stacked or side by side.
Where a cluster of ducts/QRS are installed the QRS should be tight to each other, alternatively they need to be far enough apart to suitably install QuelStop Fire Batt or the original wall construction, all in accordance with the specific installation detail and tested scope of application.
A full set of installation details and a step by step guide are available and we recommend you check all available data before commencing installation.
For full details of the tested scope of application and for installation details, please contact the Quelfire Technical Team.
Tested Details
Tested Details
