Ceiling Fan Cuff for 100mm PVC Duct | CFC
Description
Description

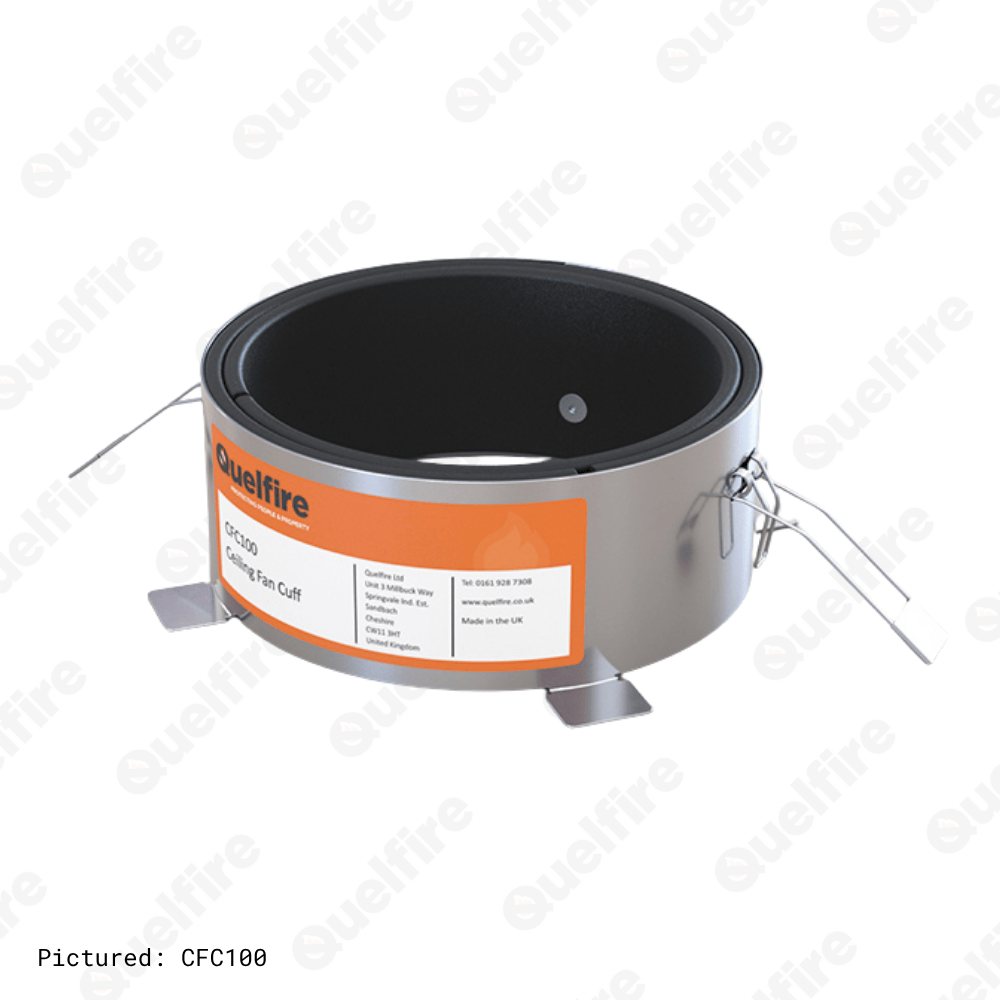

Quelfire’s CFC Ceiling Fan Cuff prevents the spread of fire through plasterboard ceilings.
One Size: For 100mm ∅ PVC Duct
It has been tested for use on both single and double-skin plasterboard ceilings and is compatible with various ventilation systems.
The CFC Ceiling Fan Cuff features built-in spring clips, making it easy to install, especially for retrofit projects.
Its steel-shell outer contains a high-performance intumescent material that reacts when exposed to fire, forming a carbonaceous char.
This char effectively seals off the gap left by the melting service, preventing fire from spreading to the next compartment.
Standards & Approvals
Standards & Approvals

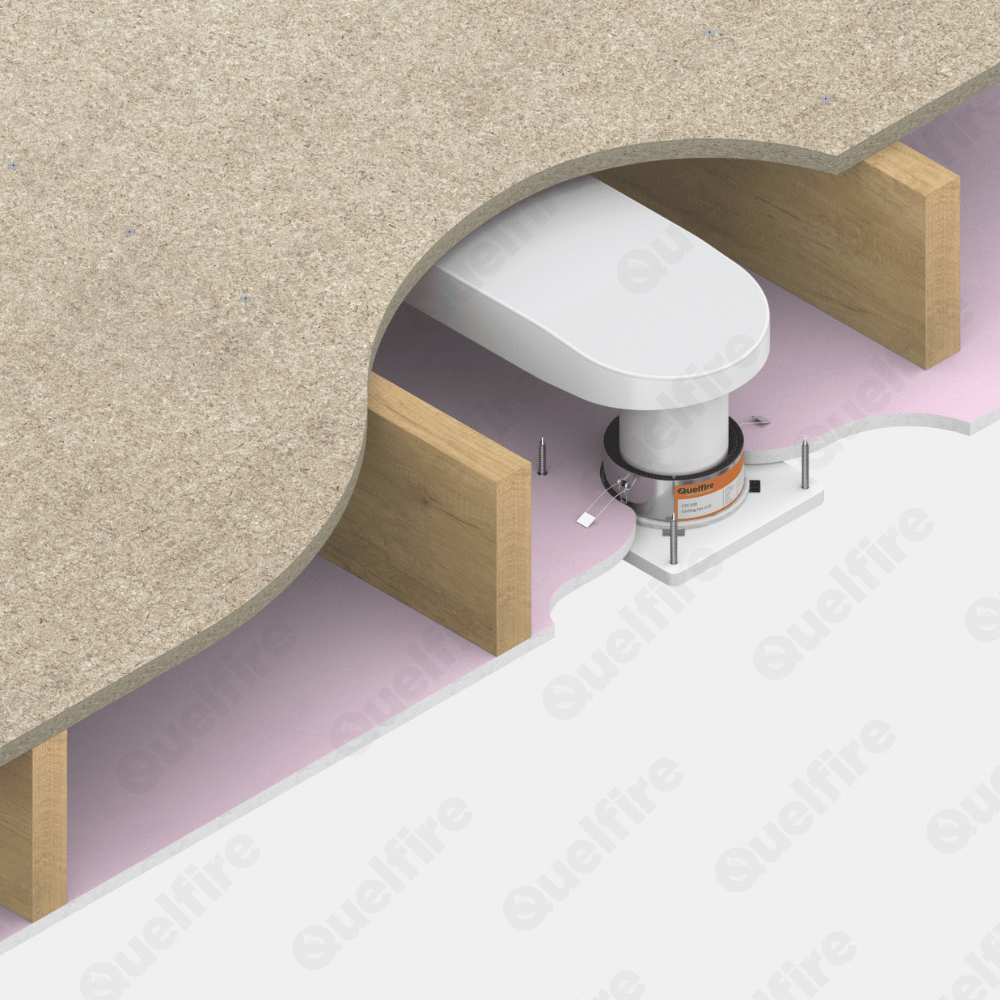

- Cut the plasterboard aperture to Ø135mm around the Ø100mm PVC duct spigot.
- Centralise the PVC duct spigot within the hole.
- From the underside push the Quelfire CFC up into the aperture around the PVC duct ensuring the spring clip clamps fully back onto the plasterboard and that the Quelfire CFC is clamped tight in position.
- Make sure the gap between the CFC and the plasterboard is clean of any debris and remove dust from all edges.
- Seal the small gap between the CFC and the plasterboard and around the power cable with QuelStop Intumescent Acrylic Sealant.
- Install the ceiling fan to the plasterboard with correct screw fixings in accordance with the ceiling fan manufacturers requirements.
For more information, see our Ceiling Fan Cuff Installation Instructions PDF.
*Please note that custom made items can expect to have longer lead times. Next working day is typical but can depend on outside factors not controlled by Quelfire.
-
CE Mark
CE marking logo shows that a product meets the health, safety, and environmental requirements of the European Economic Area (EEA) and can be freely traded within the EEA market. CE marking is a voluntary requirement for passive protection penetration seals.
-
BS EN 1366-3 tested
The Warringtonfire logo is evidence that this product was BS EN 1366-3 fire resistance tested at a Warringtonfire accredited test laboratory.
Product Info & Features
Product Information
| Property | Details |
|---|---|
| Composition | The CFC Ceiling Fan Cuffs consist of a continuous pressed stainless steel flexible shell containing a high-performance graphite-based intumescent material. This material reacts under the influence of heat to exert pressure on the duct as it softens, forming a carbonaceous char that acts as an effective insulation plug, preventing fire from passing through to the adjoining compartment. The CFC has built-in spring clips which securely hold it to the plasterboard ceiling. |
| Testing & Installation Responsibility | The CFC has been tested in the scenario shown on specific manufacturers’ fan units. However, the customer/installer is responsible for ensuring suitability. Installers should verify the product, test data available, standards to which the product is tested, fan units and ducting, and floor/ceiling construction meet their specific scenario. Quelfire is unable to provide guidance for all possible installations, so consulting a fire engineer is recommended for final suitability confirmation. |
Features & Benefits
-
Tested generally in accordance with BS EN 1364-2 Fire Resistance Tests for non-loadbearing elements – Part 2: Ceilings and additional guidance from BS EN 1366-3. (Test Report WF424611 and WF510322)
-
Up to 90 minutes Integrity and Insulation.
-
Can be retrofitted.
-
Suitable for a range of ventilation systems.
-
Tested on both single and double skin plasterboard ceiling timber floors.
Product Information
| Property | Details |
|---|---|
| Composition | The CFC Ceiling Fan Cuffs consist of a continuous pressed stainless steel flexible shell containing a high-performance graphite-based intumescent material. This material reacts under the influence of heat to exert pressure on the duct as it softens, forming a carbonaceous char that acts as an effective insulation plug, preventing fire from passing through to the adjoining compartment. The CFC has built-in spring clips which securely hold it to the plasterboard ceiling. |
| Testing & Installation Responsibility | The CFC has been tested in the scenario shown on specific manufacturers’ fan units. However, the customer/installer is responsible for ensuring suitability. Installers should verify the product, test data available, standards to which the product is tested, fan units and ducting, and floor/ceiling construction meet their specific scenario. Quelfire is unable to provide guidance for all possible installations, so consulting a fire engineer is recommended for final suitability confirmation. |
Features & Benefits
-
Tested generally in accordance with BS EN 1364-2 Fire Resistance Tests for non-loadbearing elements – Part 2: Ceilings and additional guidance from BS EN 1366-3. (Test Report WF424611 and WF510322)
-
Up to 90 minutes Integrity and Insulation.
-
Can be retrofitted.
-
Suitable for a range of ventilation systems.
-
Tested on both single and double skin plasterboard ceiling timber floors.
Specification Details
| Product Code | PVC Duct Size (mm) | Recommended Hole Diameter (mm) | CFC Length (mm) | Fire Rating |
|---|---|---|---|---|
| CFC100 | Ø100mm | Ø135mm | 50mm | Up to 90 minutes |
| Product Code | PVC Duct Size (mm) | Recommended Hole Diameter (mm) | CFC Length (mm) | Fire Rating |
|---|---|---|---|---|
| CFC100 | Ø100mm | Ø135mm | 50mm | Up to 90 minutes |
Frequently Asked Questions
Can a faulty ceiling fan cause a fire?
Can a faulty ceiling fan cause a fire?
Yes, faulty ceiling fans pose the risk of fire, highlighting the importance of installing the correct products in line with the tested scope of application.
How can I firestop a ceiling fan?
How can I firestop a ceiling fan?
You can firestop a ceiling fan using the Quelfire CFC Ceiling Fan Cuff. However, before installing, it is important to always check the tested scope of application and manufacturers’ guidance. View our installation information!
How does the ceiling fan cuff work?
How does the ceiling fan cuff work?
In the event of a fire, the intumescent material of the CFC expands and forms a carbonaceous char. This closes any gaps left behind by the melting service, preventing the spread of fire to the next compartment.
