QuelCoil Continuous Intuwrap is a universal intumescent pipe wrap used to maintain the fire rating of walls and floors where they have been penetrated by plastic pipes and/or metallic pipes with combustible insulation. It can be cut to length on site so there is no need to worry about ordering multiple size individual wraps to suit different pipe sizes.
One Size: 25 metre coil (2mm thick x 50mm wide)
Standards & Approvals
Standards & Approvals
The QuelCoil Intuwrap is a very universal product that is cut to length on site to suit the specific pipe diameter and material.

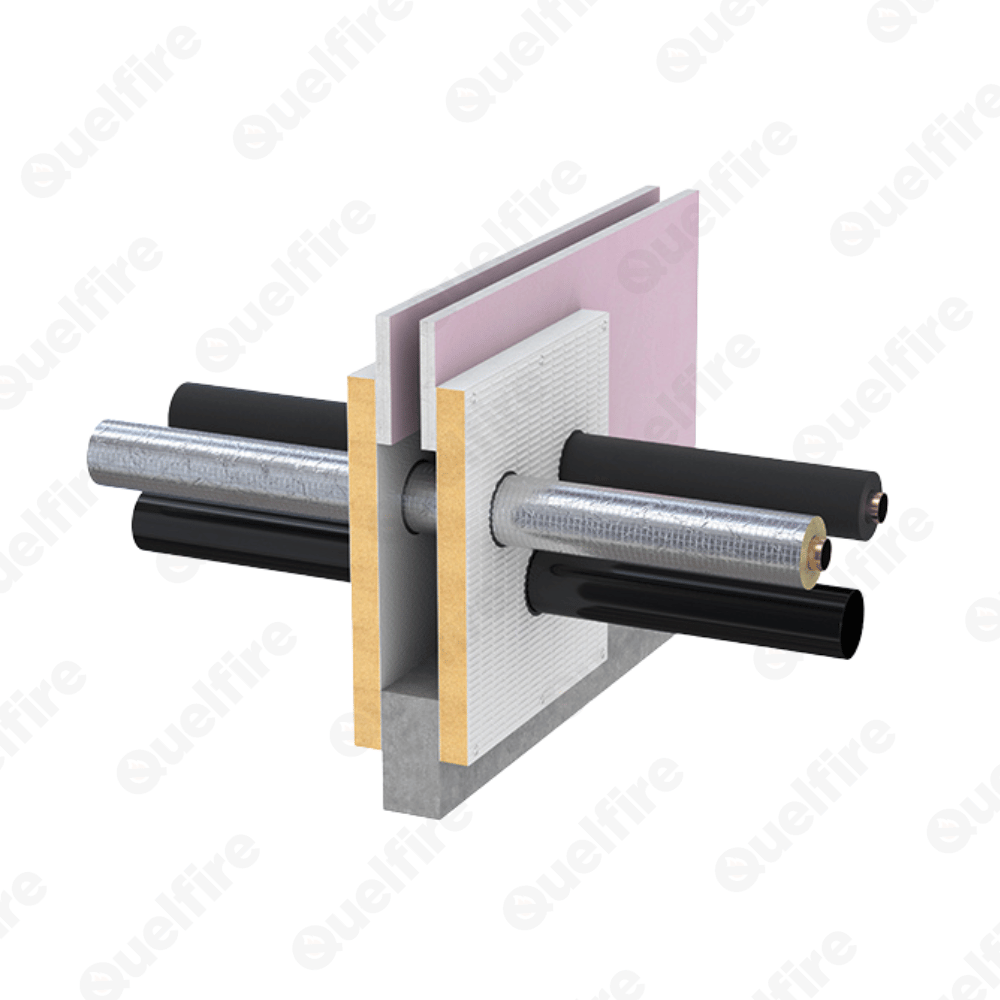

It can be used around insulated non-combustible pipes and can also be used directly around combustible plastic pipes.
The number of layers ranges between 1 and 6 layers and depends on the outside diameter of the plastic pipe / thickness of insulation.

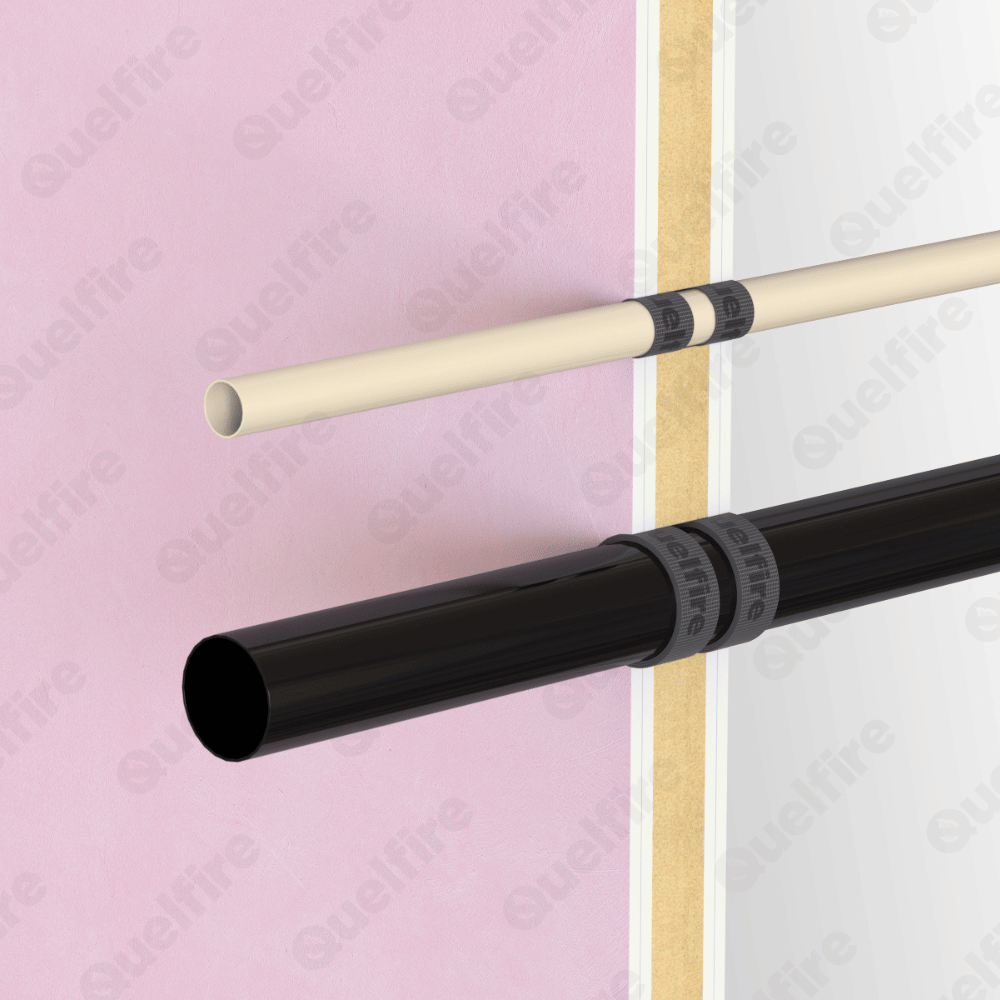

QuelCoil Intuwrap can be installed directly into both solid masonry walls and fire rated plasterboard partition walls (where the specification of the wall and insulation is appropriate). The QuelCoil is simply wrapped around the services to achieve the correct number of layers, it can be cut to length with a sharp knife and then sealed with the supplied self-adhesive fibre reinforced tape.

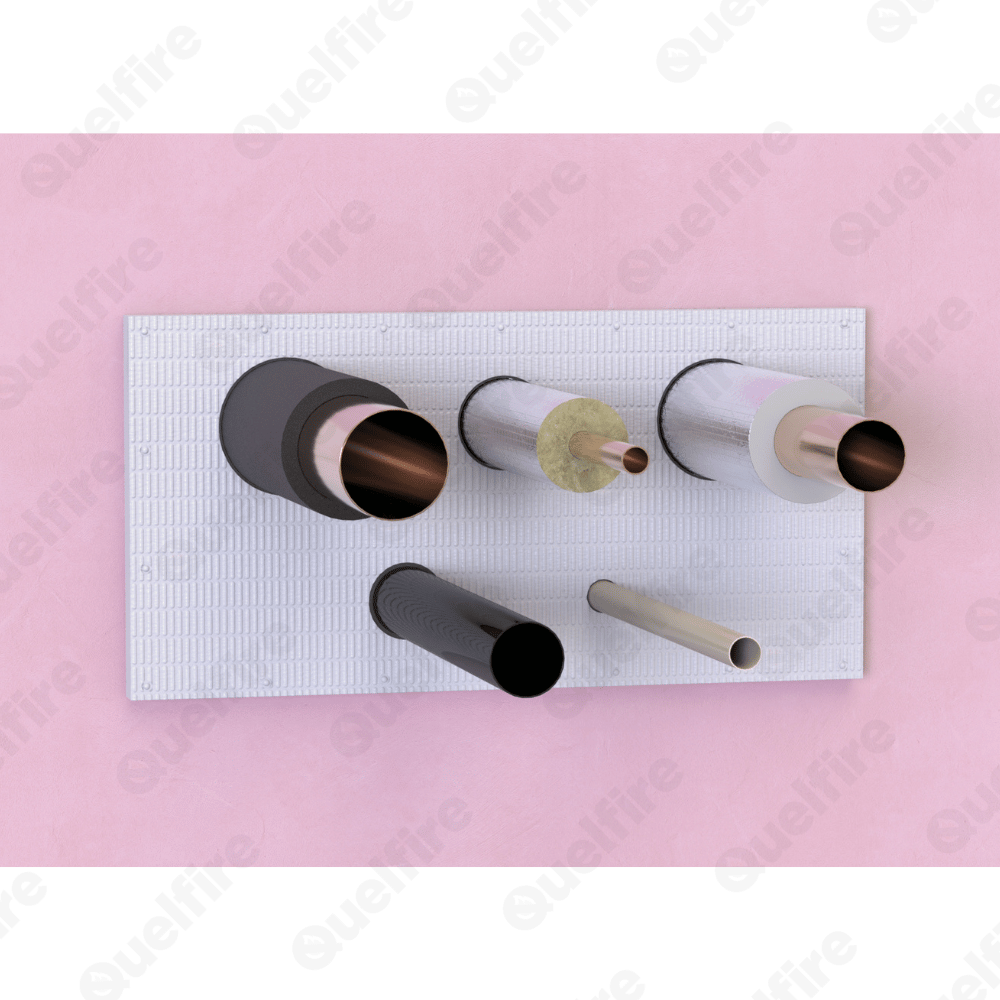

There must be no gap around the outside of the QuelCoil Intuwrap once installed so it is important to drill holes for services accurately taking into consideration the number of layers of QuelCoil required. For oversized holes in walls, it will be necessary to install the QuelCoil in conjunction with the QuelStop Fire Batt system.
Where holes in floors are incorrectly drilled oversize or larger square holes are left or formed, then the hole will need shuttering and the whole penetration backfilling with QF2 Fire Protection Compound.
There must be no gap around the QuelCoil Intuwrap and the Intuwrap must be fitted flush with the underside of the concrete slab or fire seal and/or flush with the face of the wall or QuelStop Fire Batt.
Full installation details and step by step instructions are available to show the options. Click here to view the installation instructions PDF.
*Please note that custom made items can expect to have longer lead times. Next working day is typical but can depend on outside factors not controlled by Quelfire.
-
CE Mark
CE marking logo shows that a product meets the health, safety, and environmental requirements of the European Economic Area (EEA) and can be freely traded within the EEA market. CE marking is a voluntary requirement for passive protection penetration seals.
-
BS EN 1366-3 tested
The Warringtonfire logo is evidence that this product was BS EN 1366-3 fire resistance tested at a Warringtonfire accredited test laboratory.
Product Info & Features
Product Information
| Property | Details |
|---|---|

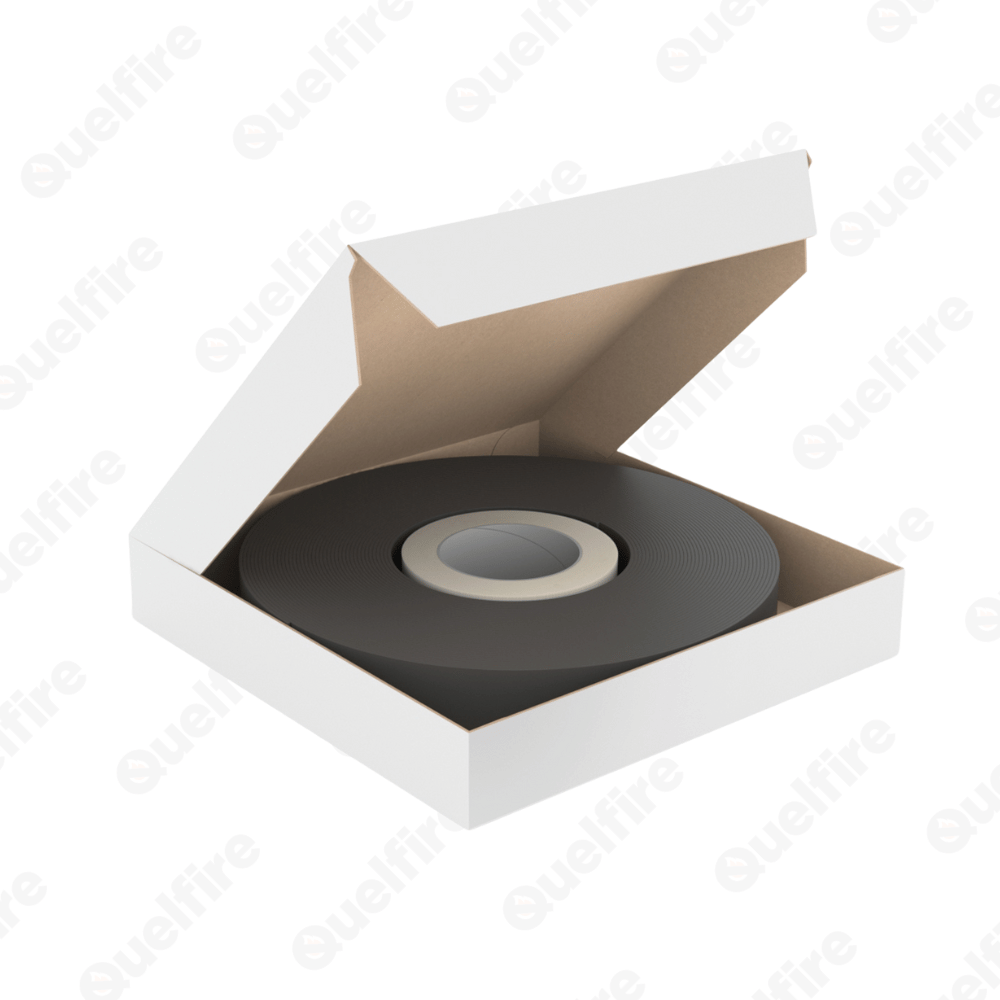

| Composition | QuelCoil Intuwrap is supplied as a 25-metre-long roll of 50mm x 2mm intumescent material. Included in the individual box is a roll of self-adhesive fibre-reinforced tape, which is used to securely fasten the wrap around the services. |
| Size | 25-metre coil, 2mm x 50mm |
Features & Benefits
-
Up to 2 hour fire rating (EI120)
-
Supplied in a 25m coil
-
Cut to length on site
-
No mechanical fixings required
-
Suitable for use in flexible walls and rigid walls
-
Suitable for use in QuelStop Fire Batt System
-
Suitable for use with QF2 Fire Protection Compound in concrete floors
-
Suitable for PVC, HDPE and PP Pipes
-
Suitable for plastic pipes up to 160mm diameter
-
Suitable for use around metal pipes with insulation
-
Suitable for use around pipe insulation up to 75mm thick
-
Performance unaffected by weathering (Type X Durability)
Product Information
| Property | Details |
|---|---|
| Composition | QuelCoil Intuwrap is supplied as a 25-metre-long roll of 50mm x 2mm intumescent material. Included in the individual box is a roll of self-adhesive fibre-reinforced tape, which is used to securely fasten the wrap around the services. |
| Size | 25-metre coil, 2mm x 50mm |
Features & Benefits
-
Up to 2 hour fire rating (EI120)
-
Supplied in a 25m coil
-
Cut to length on site
-
No mechanical fixings required
-
Suitable for use in flexible walls and rigid walls
-
Suitable for use in QuelStop Fire Batt System
-
Suitable for use with QF2 Fire Protection Compound in concrete floors
-
Suitable for PVC, HDPE and PP Pipes
-
Suitable for plastic pipes up to 160mm diameter
-
Suitable for use around metal pipes with insulation
-
Suitable for use around pipe insulation up to 75mm thick
-
Performance unaffected by weathering (Type X Durability)
Standard Installation Detail Examples
| File | |
|---|---|
| QCL-FW100-01 | Plastic Pipe Penetrating a Flexible or Rigid Wall | View |
| QB-CF150-D-06 | Plastic Pipe Penetrating a Rigid Floor | View |
| QB-FW100-D-SS-04 | Insulated Metal Pipe Penetrating a Fleible or Rigid Wall (Single Side Access) | View |
| QB-PC230-P-12 | TracPipe CC Penetrating a Plasterboard Timber Framed Ceiling | View |
| QB-SW85-D-04 | Insulated Metal Pipe Penetrating a Shaft Wall (Single Side Access) | View |
Browse More Tested Details
We have listed just five examples of tested details using QuelCoil, though there are more available. In total, our standard installation details library contains over 600 tested details across our full product range.
Videos
-
Firestopping Product Spotlight: QuelCoil Continuous Intuwrap
In this short video, Glenn Hutchins (Business Development Manager, North) highlights the QuelCoil Continuous Intuwrap. This product is a versatile and used to maintain the fire rating of walls where they have been penetrated by plastic pipes and/or metallic pipes with combustible insulation. It can be cut to length on site.
-
How to Firestop Plastic Pipes Using QuelCoil Intumescent Pipe Wrap & Fire Batt
This short video, demonstrated by Glenn Hutchins (Business Development Manager, North), shows how to use QuelCoil Intuwrap to firestop plastic pipes in Fire Batt. It is supplied in a 25m roll and comes packaged in a pizza-like box with tape.
-
Firestopping Tested Detail: Insulated Metal Pipe Penetrating a Flexible or Rigid Wall (QuelCoil)
We have done some recent testing with up to 75mm thick phenolic insulation using the QuelStop Firestopping System and the QuelCoil Intuwrap around the phenolic insulation (continuous sustained).
Frequently Asked Questions About QuelCoil
What is QuelCoil used for?
What is QuelCoil used for?
QuelCoil is an intumescent pipe wrap designed to maintain the fire resistance of walls and floors where plastic pipes pass through. It expands in a fire as the plastic pipe melts and seals off the softened pipe, maintaining compartmentation.
Can QuelCoil be cut to length?
Can QuelCoil be cut to length?
Yes – QuelCoil is supplied in a continuous roll and can be cut to the required length using a sharp knife or scissors.
